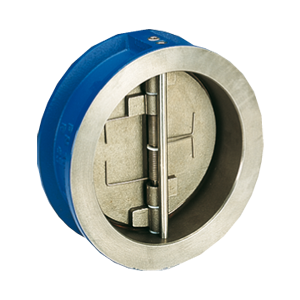

Plate check valves - 895V
- PRESSURE PFA/PS in bar θ 100°
- BODY DN50 to 150 :GJL cast iron epoxy coatedBODY DN200 to 400 :GJS ductile iron epoxy coated
- PLATES : stainless steel (304)
- SEAL : FKM
- SPRING : stainless steel
DN | PFA | PS | Cat | Réf. | UV | ||||
" | mm | water | L1 | L2 | G1 | G2 | |||
2 | 50 | 16 | 16 | 16 | 16 | 16 | 1 | 149B3000V | 1 |
21/2 | 65 | 16 | 16 | 16 | 15 | 16 | 1 | 149B3001V | 1 |
3 | 80 | 16 | 16 | 16 | 12 | 16 | 1 | 149B3002V | 1 |
4 | 100 | 16 | 16 | 16 | 10 | 16 | 1 | 149B3003V | 1 |
5 | 125 | 16 | 16 | 16 | 0.5 | 16 | 1 | 149B3004V | 1 |
6 | 150 | 16 | 13 | 16 | 0.5 | 16 | 1 | 149B3005V | 1 |
8 | 200 | 16 | 10 | 16 | 0.5 | 16 | 1 | 149B3006V | 1 |
10 | 250 | 16 | 10 | 16 | 0.5 | 14 | 1 | 149B3007V | 1 |
12 | 300 | 16 | 10 | 16 | 0.5 | 11 | 1 | 149B3008V | 1 |
16 | 400 | 16 | 10 | 16 | x | 8 | 1 | 149B3010V | 1 |
