Zawory kulowe - X2900

Powrót do gamy

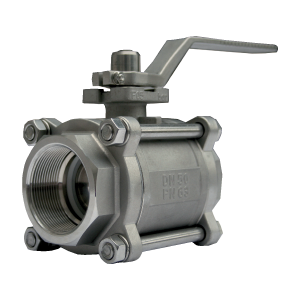

X2900

Industry, high temperature, high pressure

female/female - PN100

Opis :

PRESSURE PFA/PS in bar
CASING : stainless steel 316 - Full bore
BALL : stainless steel 316 - SEALS : PTFE
HANDLE : with locking system
SPECIAL : ISO EN 5211 top connection, actuation possible
TYPE X2900 : PN 100

DN		PFA	PS				Cat	Réf.	UV
"	mm	water	L1	L2	G1	G2	Cat	Réf.	UV
1/2	15	100	100	100	100	100	4.3	149B12103	1
3/4	20	100	100	100	100	100	4.3	149B12104	1
1	25	100	100	100	100	100	4.3	149B12105	1
1^1/4	32	100	62	100	x	100	4.3	149B12106	1
1^1/2	40	100	50	100	x	25	4.3	149B12107	1
2	50	100	40	100	x	20	4.3	149B12108	1

Dokumentacje

Technical datasheet X2900_TS_UK
